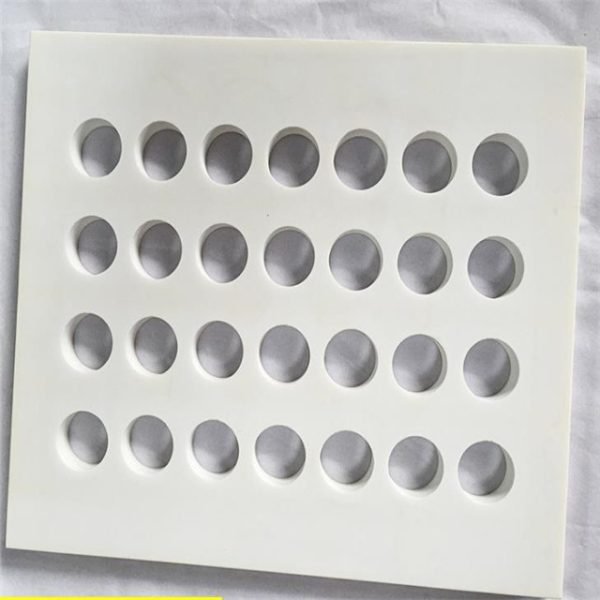

99.6%alumina ceramic plate

Alumina ceramics are the industrial ceramic oxides of Aluminum which are used in many different industries for their hardness and resistance to abrasion, as well as their superior heat resistance.

Features of alumina ceramic plate:

1.Extreme wear and abrasion resistance

2.Chemical corrosion resistance under high temperature

3.High dielectric properties

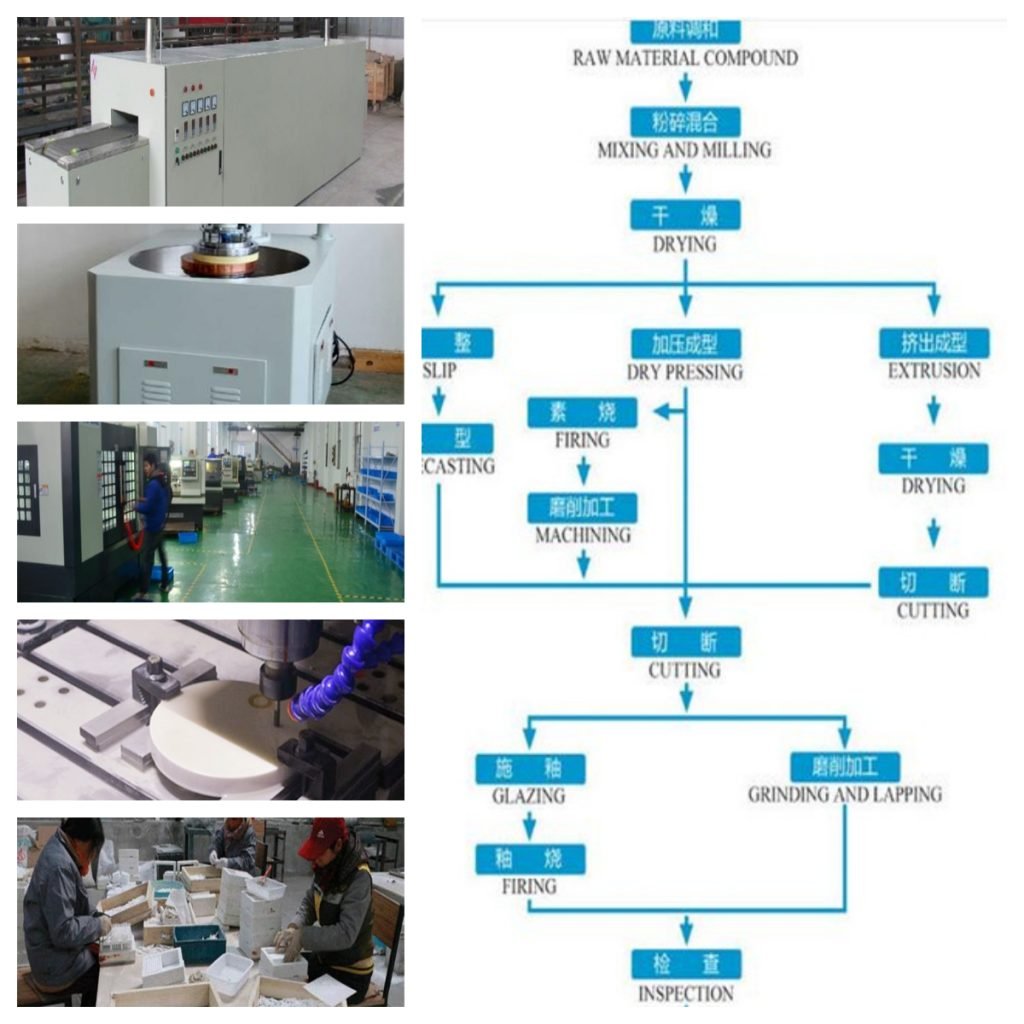

Production process:

Mechanical proferties of alumina ceramic plate:

※Density: 3.6g/cm3

※Compressive strength: 3400Mpa

※Flexural strength: 300Mpa

※Vickers hardness: 1800 H0.5

※Elastic modulus: 350Gpa

※20 °C volume resistance :10¹⁴

Application:

※High-temperature heating elements

※Abrasion resist lining

※Electronic insulators

※Semiconductor parts

※Machine mechanical seals

※Ball bearing and roller guide

※Plungers and shaft in wear resist environments

Shipping:

C-Ceramic is your alumina ceramic partner for all your advance ceramic and technical ceramic machining.Welcome to contact us.
